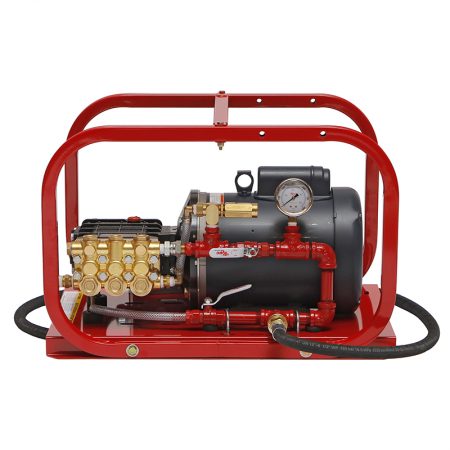

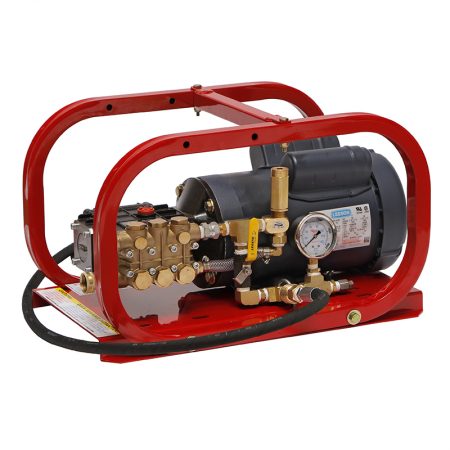

EL2 Hydrostatic Test Pump 1.5 GPM up to 1000 PSI
The EL2 model hydrostatic test pump offers 1.5 GPM up to 1000 PSI, is designed for testing sprinkler systems, plant process piping, pressure vessels, steam and small diameter water lines. Triplex plunger pump with inner oil bath, powered by a totally enclosed fan cooled 1 HP 50/60 Hertz motor with manual thermal overload protection. Compact, lightweight and portable to easily maneuver on site. Unit also available with explosion proof motor.
Literature
Brochure
Manual
Parts Breakdown
Schematics
All-in-One
-
1.5 GPM up to 1000 PSI
-
1 HP Electric Motor, TEFC, 110/220 Volt, 50/60 HZ
-
Adjustable pressure regulator, from 100 to 1,000 PSI
-
Stainless Steel liquid-filled gauge ensures accurate readings
-
Rugged roll cage construction, protects pump from damage
-
1 Year Warranty from Manufacturers Defect
-
Pump weight: 85 pounds Dimensions: 22 x 14 x 14 Shipping: 87 pounds
Wheel and Handle kit option available for increased mobility, can be added to your unit at any time.
All RICE units can be “Built to Suit”, contact the factory for special order options or custom build to meet your specific test requirements.
